Generating a CSR code on IIS7

CSR generation for the Internet Information Server v.7 (IIS7) should be done through Internet Services Manager using the steps below:

  • Click Start > Administrative Tools

  • Start Internet Information Services (IIS) Manager

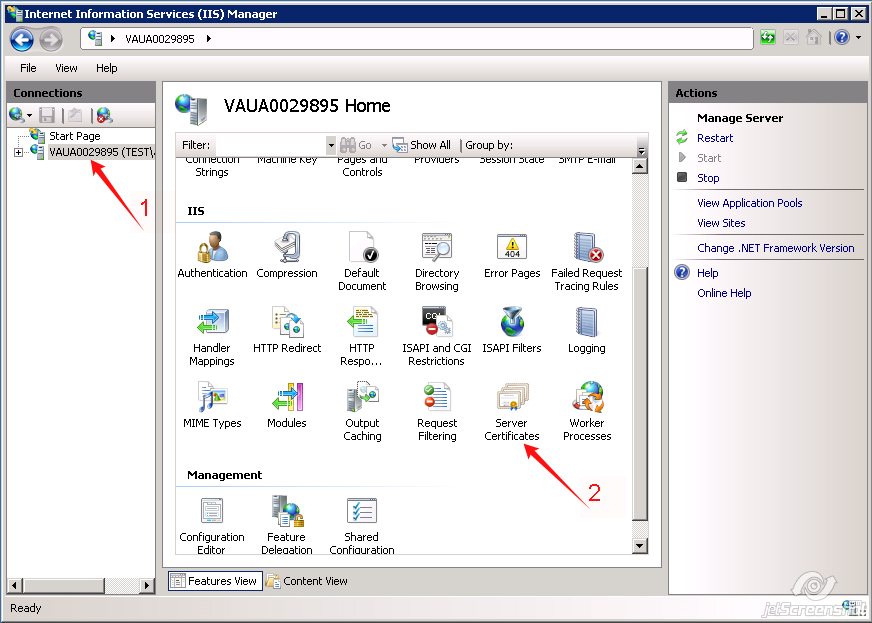

  • Click Server Name > double-click on the "Server Certificates" button in the "IIS" section, located in the center menu

IIS7 Installation.jpg

  • Choose the "Actions" menu (on the right) > click on "Create Certificate Request".


  • The Request Certificate wizard will be opened. From here, you will need to enter the information required for the CSR code (details and example listed below):


Common Name: yourdomain.com

                Organization: MyCompany Ltd

                Organization Unit (eg, section): IT, Support, Sales etc.

                City/ Locality Name: Los Angeles

                State or Province Name (full name): California

                Country Name (2 letter code): US

For Wildcard SSL certificates the common name should be specified in the format:  *.yourdomain.tld

  • Click Next once all fields are filled in completely

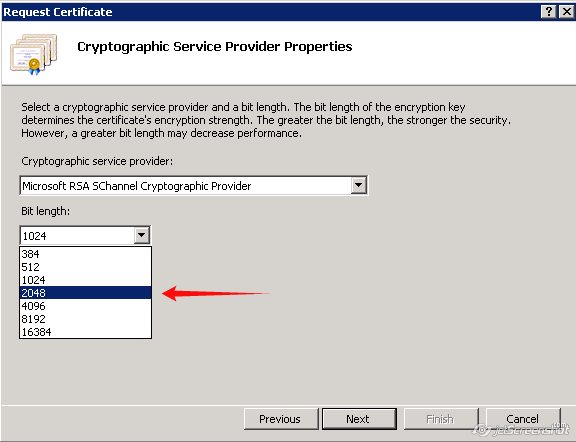

  • In the "Cryptographic Service Provider Properties" window:

    • Leave Cryptographic Service provider Default (Microsoft RSA SChannel Cryptographic Provider)

    • Change the Bit Length to 2048.

In accordance with the Comodo (now Sectigo) Certificate Authority policy change, starting from December 20, 2010, SSL Certificates can be issued using CSR codes with 2048-bit and higher.

    • Click Next.

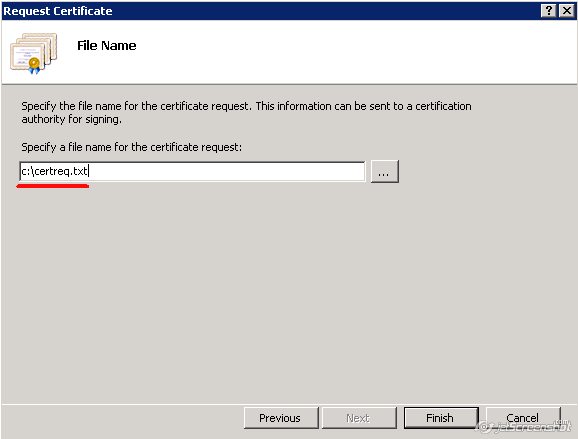

  • Specify a filename and location to save your CSR code (e.g. c:\certreq.txt)

  • Click Finish.
