How to edit DNS zone in cPanel

In order to edit the DNS zone of the domain in your cPanel account, do the following:





For cPanel Basic Theme

1. Log into your cPanel.

2. Navigate to the Domains section and click on the Zone Editor menu.




3. Click the Manage button next to the domain which DNS zone you would like to edit:



In the next menu, you can add new records, edit existing ones, or reset the DNS zone.


If you would like to add a new record, click + Add Record:



Further steps depend on the record type you wish to add:

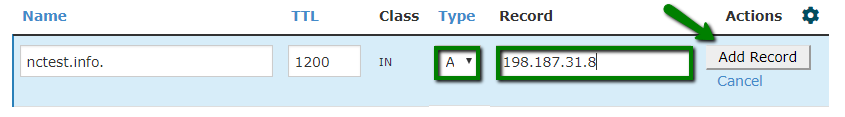

Choose A in the drop-down menu next to the Type field.

An A record (Address Record) points a domain or subdomain to an IP address.
· Name: must be a domain with an optional period at the end.
· TTL: must be a positive integer (in seconds).
· Record: must be an IP address.
Once all the fields are filled in, click the Add Record button:




Choose AAAA in the drop-down menu next to the Type field.

AAAA record, also known as 'IPv6 address record', maps a hostname to a 128-bit IPv6 address in the Domain Name System (DNS).

Such an option exists in our Zone Editor menu, but full IPv6 support has not been implemented yet:

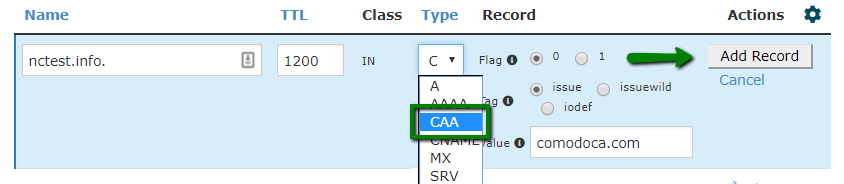

Choose CAA in the drop-down menu next to the Type field.

A CAA (Certification Authority Authorization) record specifies which certificate authorities (CAs) are allowed to issue certificates for a domain.

· Name: must be a domain with an optional period at the end.
· TTL: must be a positive integer (in seconds).
· Flag: 0 or 1
· Tag: issue, issuewild or iodef
· Record: must be a valid zone name with the issue and issue wild tags or a valid mailto or standard URL with the iodef tag.
Once all the fields are filled in, click the Add Record button:

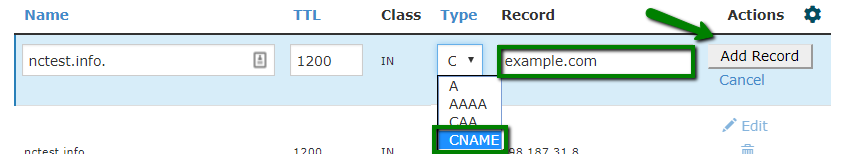

Choose CNAME in the drop-down menu next to the Type field.

CNAME (Canonical Name) points one domain or subdomain to another domain name, allowing you to update one A Record each time you make a change, regardless of how many Host Records need to resolve to that IP address.

· Name: must be a domain with an optional period at the end
· TTL: must be a positive integer (in seconds)
· Record: must be a valid zone name
Once all the fields are filled in, click the Add Record button:

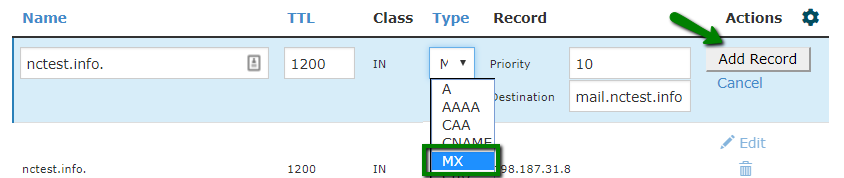

An MX (Mail Exchanger) record specifies a mail server responsible for accepting email messages on behalf of a domain. This record is essential for email delivery.

· Name: must be a domain with an optional period at the end
· TTL: must be a positive integer (in seconds)
· Priority must be an integer; lower value means more preferred
· Destination: must be a valid zone name
Once all the fields are filled in, click on the Add Record button:

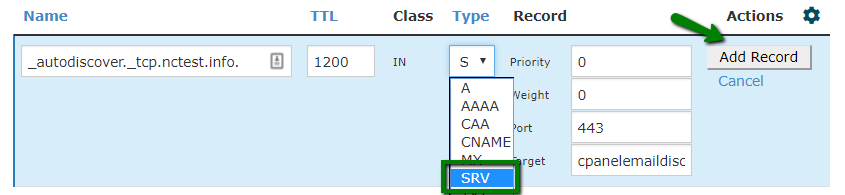

Choose SRV in the drop-down menu next to the Type field.

An SRV record points one domain to another domain name using a specific destination port.

· Name: includes the service (the symbolic name of the desired service) and protocol (the Protocol used by the service, usually either TCP or UDP)
· TTL: must be a positive integer (in seconds)
· Priority: priority of the target host, lower value means more preferred
· Weight: relative weight for records with the same priority, a higher value means a more preferred one
· Port: TCP or UDP port on which the service is to be found
· Target: canonical hostname of the machine providing the service, ending in a dot

Example:

Name: _autodiscover._tcp.yourdomain.com
Type: SRV
TTL: 1200
Priority: 0
Weight: 0
Port: 443
Target: privateemail.com




Choose TXT in the drop-down menu next to the Type field.

These records hold a free text form of any type. A fully qualified domain may have many TXT records. The most common uses for TXT records are Sender Policy Framework (SPF), DomainKeys (DK), DomainKeys IdentifiedE-mail (DKIM). TXT records historically have also been used to contain human readable information about a server, network, data center and other accounting information.

· Name: must be a domain with an optional period at the end
· TTL: must be a positive integer (in seconds)
· Record: cannot be empty or more than 255 characters.

Example:

Name: yourdomain.com
Type: TXT
Record: v=spf1 +a +mx +ip4:198.187.31.8 ?all

Once all the fields are filled in, click on the Add Record button:





In order to edit the existing records, choose the record that you want to edit from the list of existing DNS records. Click Edit, then enter values that you need and click Save Record to save changes:







Also, it is possible to reset the DNS zone for your domain to a default one. In this case, the system will erase any modifications you have made to your zone records in this interface or in the Simple DNS zone editor interface. Before you reset your zone file, make sure that you write down any changes that you wish to save.
In order to reset a zone file, click 'Manage' in front of a domain name, click on the gear button > Reset Zone:





For cPanel Retro Theme

1. Log into your cPanel.
2. Navigate to the Domains section and click the Zone Editor option:



3. Click the Manage button in front of the domain which DNS zone you would like to edit:



In the next menu, you can add new records, edit existing ones, or reset the DNS zone.

If you would like to add a new record, click + Add Record:



Further steps depend on the record type you wish to add:

Choose A in the drop-down menu next to the Type field.
An A record (Address Record) points a domain or subdomain to an IP address.
· Name: must be a domain with an optional period at the end.
· TTL: must be a positive integer (in seconds).
· Record: must be an IP address.
Once all the fields are filled in, click on the Add Record button:




Choose AAAA in the drop-down menu next to the Type field.

AAAA record, also known as 'IPv6 address record', maps a hostname to a 128-bit IPv6 address in the Domain Name System (DNS).

Such an option exists in our Zone Editor menu, but full IPv6 support has not been implemented yet:




Choose CAA in the drop-down menu next to the Type field.
A CAA (Certification Authority Authorization) record specifies which certificate authorities (CAs) are allowed to issue certificates for a domain.

· Name: must be a domain with an optional period at the end.
· TTL: must be a positive integer (in seconds).
· Flag: 0 or 1
· Tag: issue, issuewild or iodef
· Record: must be a valid zone name with the issue and issuewild tags or a valid mailto or standard URL with the iodef tag.
Once all the fields are filled in, click on the Add Record button:




Choose CNAME in the drop-down menu next to the Type field.

CNAME (Canonical Name) points one domain or subdomain to another domain name, allowing you to update one A Record each time you make a change, regardless of how many Host Records need to resolve to that IP address.

· Name: must be a domain with an optional period at the end
· TTL: must be a positive integer (in seconds)
· Record: must be a valid zone name
Once all the fields are filled in, click on the Add Record button:




An MX (Mail Exchanger) record specifies a mail server responsible for accepting email messages on behalf of a domain. This record is essential for email delivery. · Name: must be a domain with
an optional period at the end
· TTL: must be a positive integer (in seconds)
· Priority must be an integer; lower value means more preferred
· Destination: must be a valid zone name
Once all the fields are filled in, click on the Add Record button:




Choose SRV in the drop-down menu next to the Type field.

An SRV record points one domain to another domain name using a specific destination port.

· Name: includes the service (the symbolic name of the desired service) and protocol (the Protocol used by the service, usually either TCP or UDP)
· TTL: must be a positive integer (in seconds)
· Priority: priority of the target host, lower value means more preferred
· Weight: relative weight for records with the same priority, a higher value means a more preferred one
· Port: TCP or UDP port on which the service is to be found
· Target: canonical hostname of the machine providing the service, ending in a dot

Example:

Name: _autodiscover._tcp.yourdomain.com
Type: SRV
TTL: 1200
Priority: 0
Weight: 0
Port: 443
Target: privateemail.com




Choose TXT in the drop-down menu next to the Type field.

These records hold a free text form of any type. A fully qualified domain may have many TXT records. The most common uses for TXT records are Sender Policy Framework (SPF), DomainKeys (DK), DomainKeys IdentifiedE-mail (DKIM). TXT records historically have also been used to contain human readable information about a server, network, data center and other accounting information.

· Name: must be a domain with an optional period at the end
· TTL: must be a positive integer (in seconds)
· Record: cannot be empty or more than 255 characters.

Example:

Name: yourdomain.com
Type: TXT
Record: v=spf1 +a +mx +ip4:198.187.31.8 ?all

Once all the fields are filled in, click on the Add Record button:





In order to edit the existing records, choose the record that you want to edit from the list of existing DNS records. Click Edit, then enter values that you need and click Save Record to save changes:







Also, it is possible to reset the DNS zone for your domain to a default one. In this case, the system will erase any modifications you have made to your zone records in this interface or in the Simple DNS zone editor interface. Before you reset your zone file, make sure that you write down any changes that you wish to save.

In order to reset a zone file, click 'Manage' in front of a domain name, click on the gear button > Reset Zone:
