How to set up a PPTP VPN connection on Mac

This tutorial will guide you through the setup of PPTP VPN connection on macOS but first let’s check our requirements and recommendations.

Requirements

In order to set up a PPTP VPN connection you will need:

  • A macOS device that supports a PPTP protocol. PPTP is not supported on macOS Sierra and higher.
  • A secure FastVPN connection (Don’t have one? Sign up here!);
  • Access to your FastVPN Account Panel.

PPTP VPN Setup instructions

1. Click the Apple icon in the upper-left corner of the screen and choose the System Preferences... option:

System Preferences is highlighted on a Mac menu

2. Within the System Preferences menu, locate the Network icon and click on it:

The Network icon is highlighted within the Mac System Preferences screen

3. Create a new connection profile by clicking the square '+' (Plus) button on the lower end of the box on the left side.

Note: Administrative privileges will be required to proceed further. To get administrative privileges, follow these steps: Locate the Lock icon in the lower-left corner of the panel labeled Click the lock to make changes and click on it to continue. When the login dialog appears, enter your Mac login username and password in the corresponding fields (if you are unable to proceed with this step and you do not have access to an administrator account, you may need to contact Apple support). Once you have entered your login details, click the OK button to continue.

After you have enabled administrative privileges, the Lock icon in in the bottom left corner will be unlocked:

Network options for Mac are shown, with a green arrow pointing to the plus symbol where you can add VPN


4. When the dialog box appears, enter the details as given below and click the Create button to continue:

  • Interface: select VPN from the drop-down
  • VPN Type: PPTP over IPSec
  • Service name: any name you prefer that helps you easily identify the VPN connection


5. Once the new connection profile is created, fill in the following fields to configure:

  • Configuration: Default
  • Server Address: select your preferred server from the server list from the FastVPN Account Panel (e.g. mel-a06.vpn.wlvpn.com)
  • Account Name: your FastVPN account username from the FastVPN Account Panel
  • Encryption: automatic (128 bit or 40 bit)
Click on Authentication Settings and proceed to the next step:

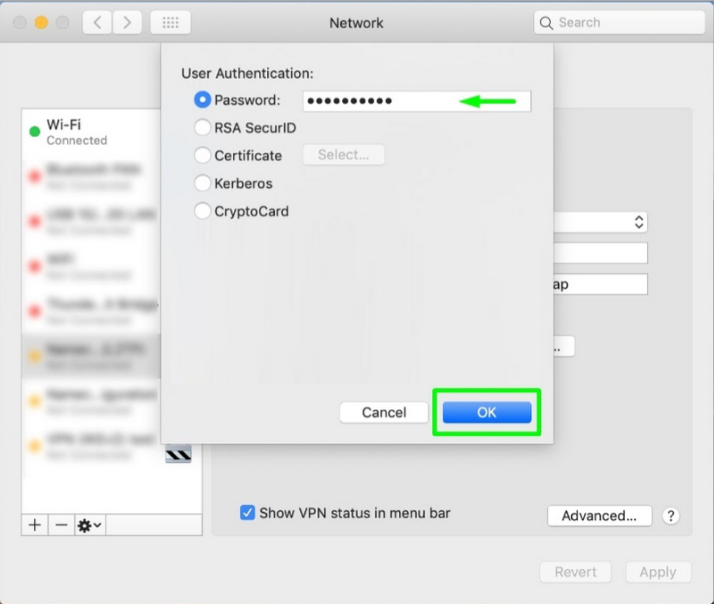

6. In the resulting dialog, enter your FastVPN account password from the FastVPN Account Panel:


7. You will be returned to the previous menu. Click on the Advanced... button in the lower-right corner next to the question mark icon:


8. In the Advanced settings panel, locate the Options tab. Put the check mark next to Send all traffic over VPN connection and click the OK button in the lower-right corner to continue:


9.  Put the check mark next to Show VPN status in menu bar located on the left from the "Advanced..." button. To save the changes, click the Apply button in the lower-right corner of the panel:


10. Test your newly created connection by clicking the Connect button just below the "Authentication Settings..." button:


11. After the connection is established, check the Status indicator at the top of the window for any error or warning messages:


12. Once the VPN client is successfully connected, look for the Status: Connected message with the Connection Time and IP Address details as shown below:


13. For a quick way to access your VPN connection, locate the VPN indicator on the top of the screen. Look for the Connect VPN (PPTP) option and click to open a context menu. From this menu, you can quickly start and stop your VPN session without navigating through the System Preferences menu:


Quick fixes

If you are unable to get the Status: Connected message, make sure you have entered your username and password from the FastVPN account panel and they are spelled correctly. Please note that our authentication system is case-sensitive, so a single incorrectly capitalized letter in either your username or password will cause your connection to fail.

 If you need any further assistance, please contact our Support Team.
